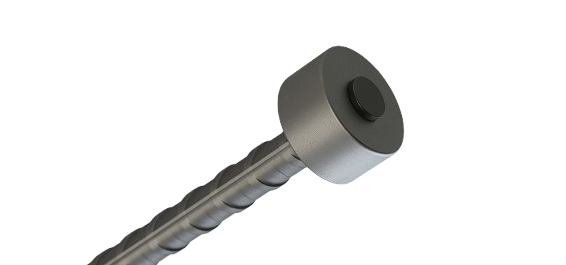

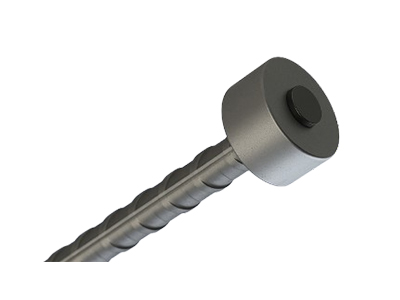

SNTP-HD Anchors are precision-engineered mechanical anchor heads used for rebar termination where standard development length or hook bends are not feasible. These anchors are designed to efficiently transfer axial forces from reinforcement bars directly into concrete, ensuring structural integrity in high-stress zones.







Technical Characteristics:

• Anchor Type: Machined head attached to rebar.

• Function: Provides mechanical bearing for load transfer instead of traditional hooked anchorage.

• Rebar Size Compatibility: Available for bar diameters from 16 mm to 50 mm.

• Material: High-strength alloy steel head, integrally connected to Fe500/Fe550/Fe600 grade TMT bars.

• Finish Options: Bare, epoxy coated, or galvanized depending on project requirement.

Advantages:

• Eliminates congestion caused by hook bars in reinforcement detailing.

• Simplifies bar placement and reduces development length.

• Enhances construction speed and quality in dense rebar zones.

• Optimized for load path continuity in critical anchorage zones.

Conformity & Testing:

• Manufactured in accordance with relevant international design principles and codes.

• Each unit undergoes dimensional checks and anchorage performance testing.

Typical Applications:

• Beam-column junctions

• Pile caps and mat foundations

• Shear wall anchor zones

• Tunnel segments, piers, and bridge decks

• Nuclear and seismic structures requiring high anchorage reliability
